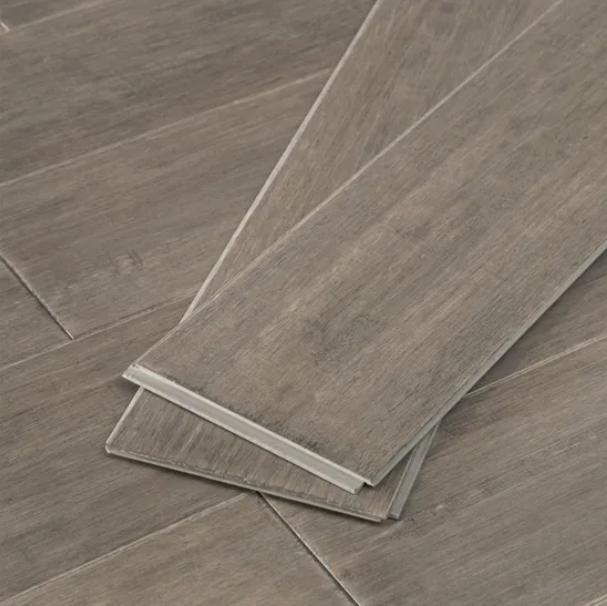

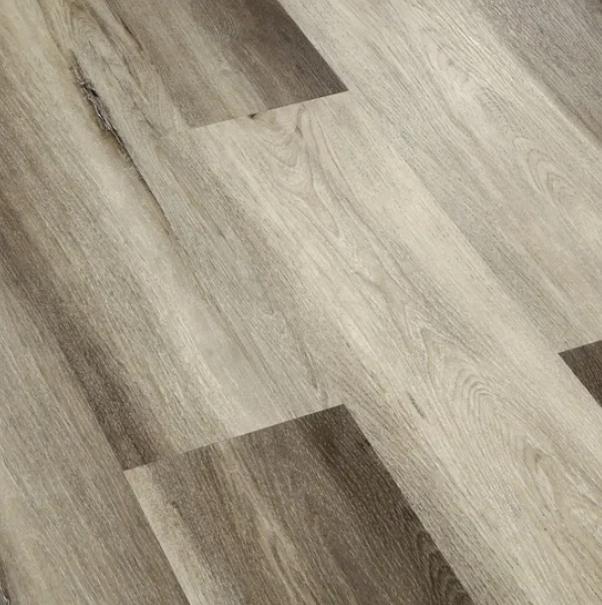

Commercial LVT Flooring
LVT Flooring Details
As a reliable LVT flooring manufacturers for global projects. Huigong is a professional LVT lock flooring manufacturer, started in 2012, focusing on waterproof commercial flooring. It has passed CE/Floorscore export certification. With its excellent performance and beautiful design, it has become an ideal choice for many residential and commercial places.
| Product Information | Luxury Vinyl Tile Florring | Brand | HG |
| Color | wood grain, marble, Solid Color | Base Material | 100% Virgin PVC & calcium carbonate |
| Density | 1.8-2.2 g/cm³ | Thickness | 4/5/6/8 mm/ Customized |
| Length/Width | 1100mm*190mm /290*900mm Customizable | Under Lay | 1.5mm IXPE |
| Surface Finish | UV Coating( Matt/ Glossy) | Embossed | Deep embossing, shallow embossing, EIR |
| Edge profile | Micro-bevel | Installation | Floating Click Lock、glue-down (optional) |
| Waterproof | 100% | Fire Rating | B1/Bfl-s1/Class A |
| Anti-Slip | DIN51130(R9) | Package | Carton Box |
| Certificate | CE/SCS/Floorscore | Application | Indoor |

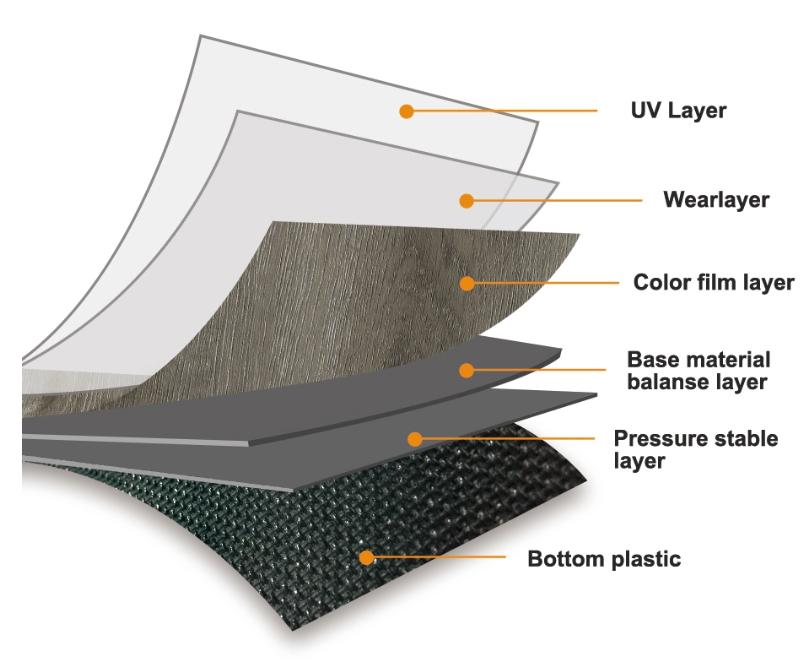

LVT Flooring Structure
Structural Description
UV Layer: Enhances the anti-fouling, antibacterial and waterproof properties of the floor, and can also make the floor surface glossy or matte.
Wearlayer: Resists friction and scratches between the soles of shoes or large items and the ground, protects the decorative layer on the surface of the floor, and prolongs the use time of the floor. The thickness of the wear-resistant layer is related to the durability of the floor, and the common thickness is 0.3-0.7mm.
Decorative layer: Simulates the texture and color of natural materials such as wood and marble, giving the floor a rich and diverse appearance to meet the needs of different decoration styles.
Base material balancing layer: A composite floor covering material formed by mixing calcium powder and resin powder in a certain proportion, as the main bearing part of the floor, provides strength and stability, and enables the floor to have a certain impact resistance.
Pressure stabilization layer: Enhances the stability of the floor structure, prevents deformation of the floor, improves the compression resistance, and makes the floor less likely to be damaged when bearing heavy objects.
Anti-slip layer: Anti-slip, shock-absorbing, sound-insulating, while enhancing the applicability and comfort of the floor in a humid environment.
LVT Floor Installation
Floating Click Lock
Long side oblique insertion and locking
- Align the long side tongue (raised part) of the floorboard with the long side groove (groove) of the laid floorboard at an angle of 30°.
- Insert obliquely and press down gently. A “click” sound indicates preliminary locking.
Short side sliding docking
- Keep the long side connected, and slide the short side tongue parallel to the short side groove of the adjacent floorboard.
- Push horizontally until both ends are completely aligned.
Short side soft hammer auxiliary locking
- Place a plastic knocking block at the short side joint (to protect the edge of the floorboard).
- Tap the knocking block with a soft rubber hammer to ensure that the short side is completely locked and eliminate slight gaps.
Comprehensive inspection
- Press the joint by hand to confirm that there is no looseness or warping.
- Repeat the above steps to complete the laying of the whole house.
Glue-Down
The LVT floor is directly glued to the ground with a special floor glue, which is especially suitable for large commercial spaces or high-traffic areas.
- Make the floor flat (error ≤3mm/2m), dry (water content <4%), and dust-free.
- Water-based acrylic glue: environmentally friendly and low-odor, suitable for indoor use.
- Use double-sided gluing method (ground + back of floor) to ensure 100% bonding coverage.
- The glue will initially set in about 1-2 hours, and it will take 24-48 hours to fully cure (avoid weight during this period).
What is LVT in flooring
LVT (Luxury Vinyl Tile)Flooring is a high-end elastic floor material made through a multi-layer composite process, combining beauty, durability and practicality. It is based on polyvinyl chloride (PVC), added with calcium carbonate, plasticizer and other ingredients, and covered with a high-definition decorative layer and a wear-resistant layer on the surface, usually in the form of square or rectangular sheets. The elastic base provides a soft feel and noise reduction effect.
Application advantages of LVT floor
LVT flooring (dry – back luxury vinyl flooring) is becoming more and more common in commercial SPC vinyl flooring applications. This is due to its AC4 – AC5 wear – resistant surface (Taber test ≥20,000 revolutions) and excellent compression resistance. Its adhesive installation system can compensate for unevenness within 2-3mm of the base layer.
It perfectly meets high-intensity use scenarios such as shopping malls, hospitals, and offices, while achieving the unity of design effect and functionality. In addition to the lower price of LVT flooring than SPC flooring, online bulk purchases from LVT flooring manufacturers can enjoy higher discounts and save money for your decoration plan.
