Aluminum Honeycomb Panel – Custom Size | Factory Direct Supply
Huigong supplies high-performance aluminium honeycomb panels for facade cladding, interior partitions, elevator cab lining, and clean room applications. Class A fire-rated. Custom size, surface finish, and private label available.
100㎡
MOQ
E0
Formaldehyde Emission Grade
1000+
Surface Finishes Available
ISO 9001 · SGS
Certification
What Is Aluminum Honeycomb Panel

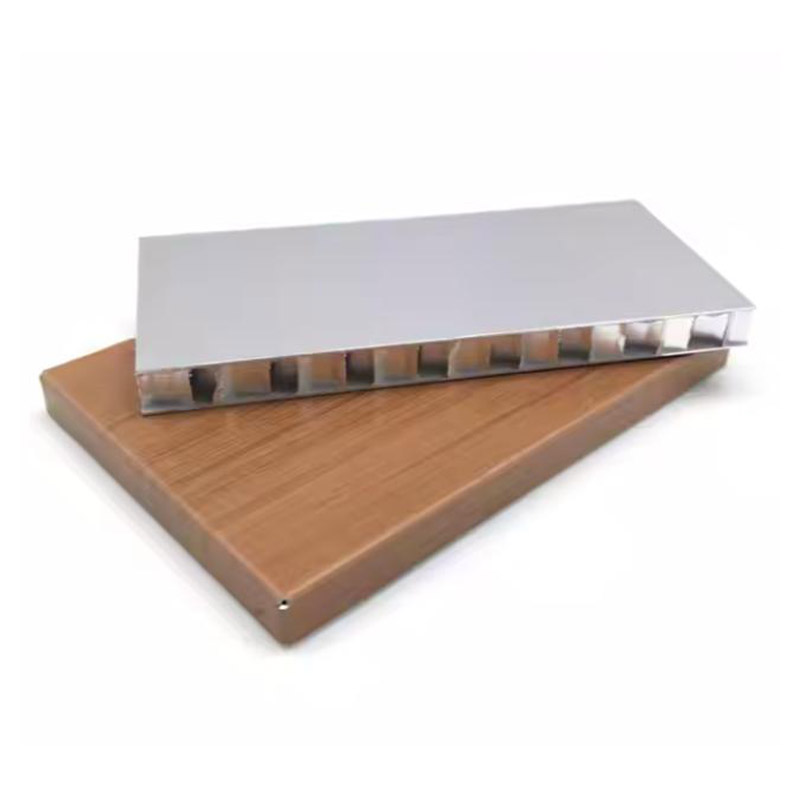

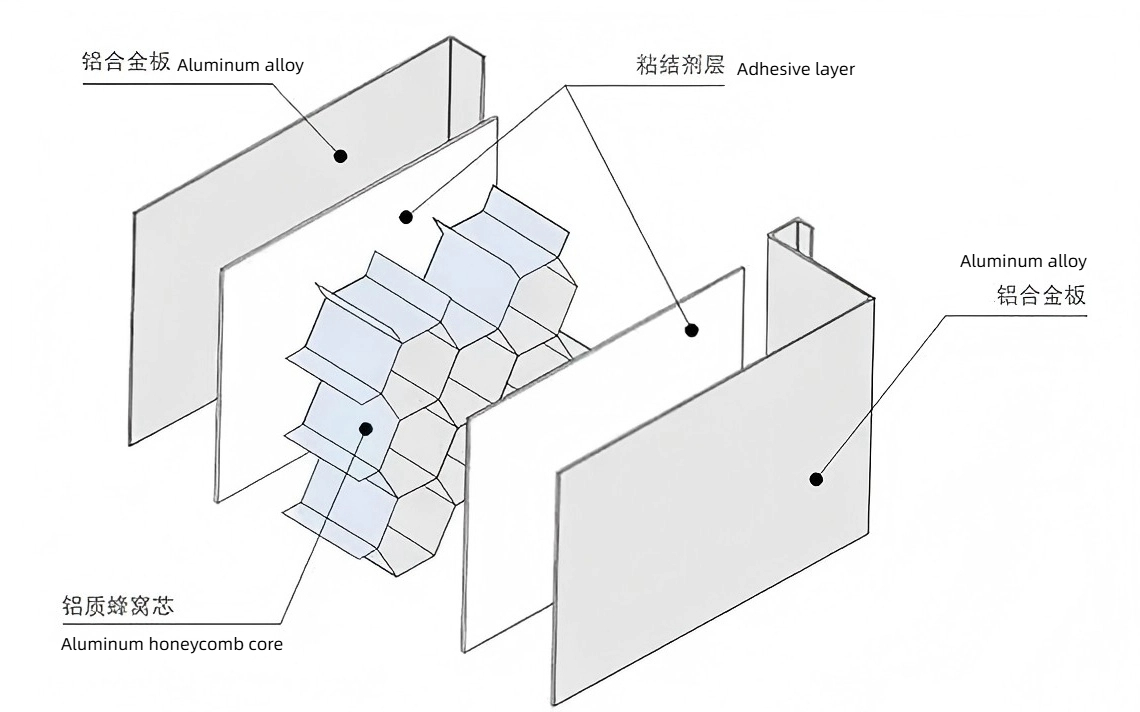

An aluminum honeycomb panel is a lightweight composite material made by bonding two thin aluminum face sheets to a hexagonal aluminum honeycomb core. The structure is inspired by natural honeycomb geometry, which provides maximum strength with minimal material.
As a professional aluminum honeycomb panel manufacturer, Huigong is committed to providing high-quality aluminum honeycomb panel solutions to customers worldwide. With advanced production lines and rigorous quality control, we supply factory-direct products, ensuring stable performance, highly competitive pricing, and customizable specifications to meet diverse project requirements.
Aluminum Honeycomb Panel Specifications
Standard product range. All dimensions and finishes are available as custom orders — contact us with your project requirements.
| Parameter | Standard | Heavy-duty | Ultra-thin |
| Face sheet thickness | 0.5 mm | 1.0 mm | 0.3 mm |
| Core cell size | 8 mm | 6 mm | 10 mm |
| Material | Aluminum honeycomb core + Aluminum face sheets + PVC new material resin(Finish) | ||
| Max panel size | 2400 × 1200 mm (custom available on request) | ||
| Surface finish options | PVDF coating · Polyester coating · Anodized · Mirror · Brushed · SPC Panel | ||
| Fire rating | Class A non-combustible · Class B1 | ||
| Formaldehyde Emission Grade | E0 | ||
| Certification | ISO 9001 · SGS · CE | ||
| MOQ | First order MOQ 100 m² | ||
| Lead time | 10-15 days after deposit payment | ||
Custom thickness from 8mm to 20mm available on request

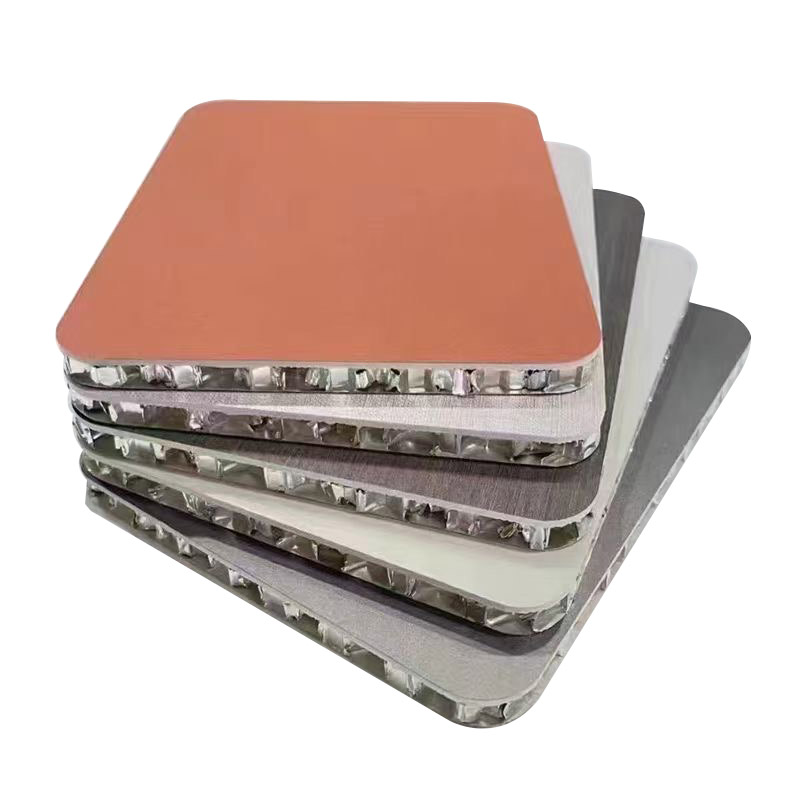

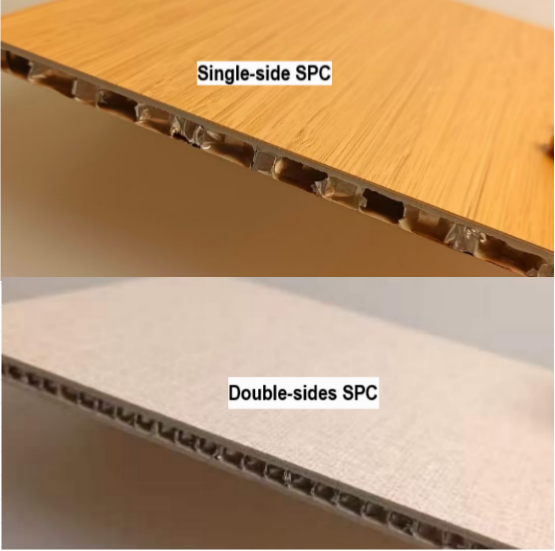

Choose Your Panel Configuration

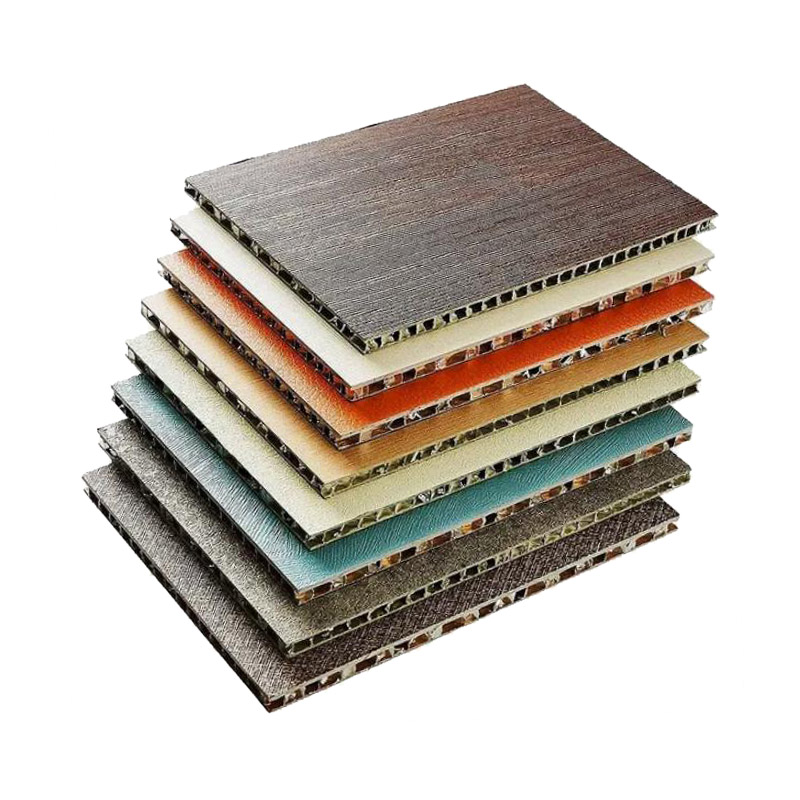

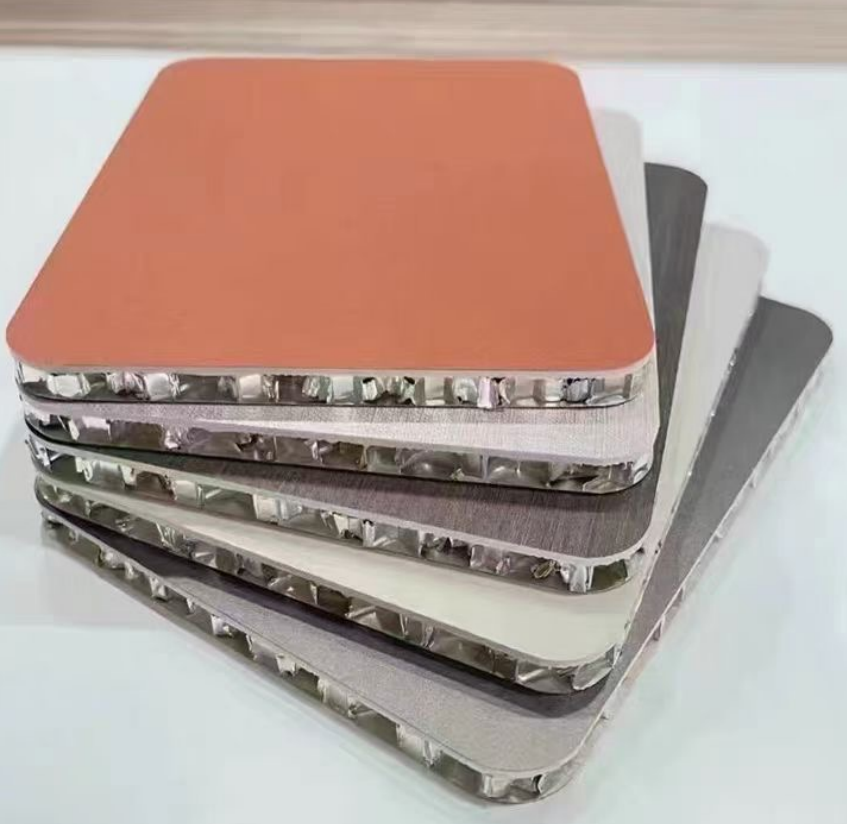

Huigong aluminum honeycomb panels are available in two structural configurations
— Single-Side and Double-Side — each compatible with aluminum sheet or SPC
decorative facing. All configurations share the same honeycomb core and Class A fire-rated certification.
01
Single-Side Honeycomb Panel
One decorative face · Open or plain back
One decorative face sheet is bonded to the top of the honeycomb core; the reverse is open or fitted with a plain backing sheet. Ideal for wall lining, false ceilings, and display installations where only one surface is visible — keeping weight and cost lower without compromising surface quality.
| Weight | 3–8 kg/m² |
| Facing | Aluminum / SPC (one side) |
| Back | Open / plain backing sheet |
| Typical use | Interior lining · Ceiling · Display |
02
Double-Side Honeycomb Panel
Decorative face on both surfaces
Decorative face sheets are bonded to both the top and bottom of the honeycomb core. The symmetrical construction eliminates warping, maximises structural rigidity, and delivers a fully finished appearance on both sides — the standard specification for cladding, elevator cab interiors, partitions, and any installation where both faces are exposed.
| Weight | 5–12 kg/m² |
| Facing | Aluminum / SPC / Mixed (both sides) |
| Back | Fully faced — same finish options |
| Typical use | Cabinet · Elevator · Partition · Ceiling |
03

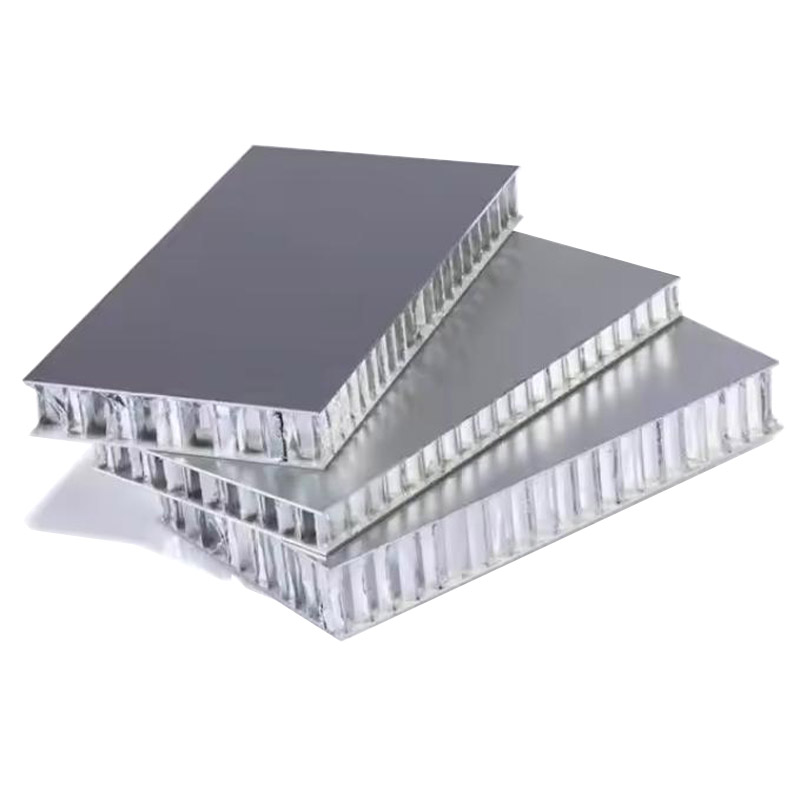

Full Aluminum Honeycomb Panel
All-aluminum construction
Full Aluminum Honeycomb Panels combine aluminum skins with an aluminum honeycomb core to deliver a lightweight, durable, and fire-resistant solution. They are widely used for interior wall panels, decorative partitions, furniture applications, and commercial interior projects.
| Weight | 1.5 kg/m² — lightest configuration |
| Facing | Aluminum |
| Typical use | Interior wall cladding, partitions, furniture panels, hotel renovations, office interiors, and commercial spaces. |
Key Features of Honeycomb Aluminum Panels
Engineered for demanding commercial and industrial projects where weight, rigidity, fire safety, and customization all matter.
Lightweight and Highly Rigid
The hexagonal honeycomb structure achieves high compressive and bending strength with minimal material, making it much lighter than a solid panel of the same thickness, yet with excellent strength.
Class A fire-resistant
Non-combustible aluminum face sheets meet Class A fire rating (GB8624 / EN13501-1). Suitable for commercial buildings, hospitals, and hotel fit-outs requiring strict fire compliance.
Full OEM & custom capability
Custom thickness (8–20 mm), panel size up to 3600 × 1220 mm, and surface treatment options: PVDF coating, polyester, anodized, mirror finish, or spc panel. Private label available.
Sound & thermal insulation
Honeycomb core structure delivers effective acoustic damping and thermal resistance, meeting requirements for medical facilities, and laboratory partitions.
Where Is Aluminum Honeycomb Panel Used?

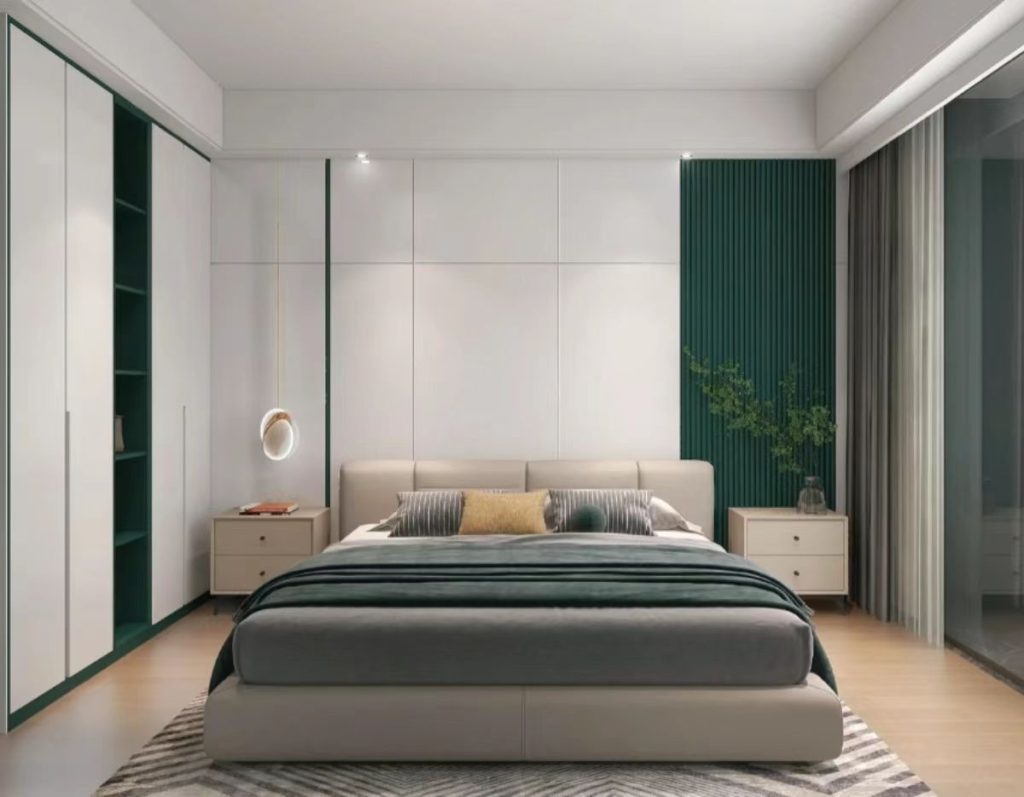

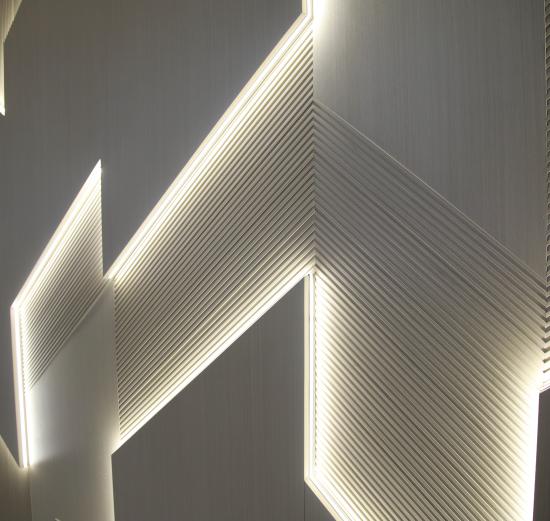

🏢 Interior wall & partition
Flat, warp-free surfaces ideal for office partitions, corridor linings, and feature walls. Acoustic performance suitable for meeting rooms and open-plan offices.

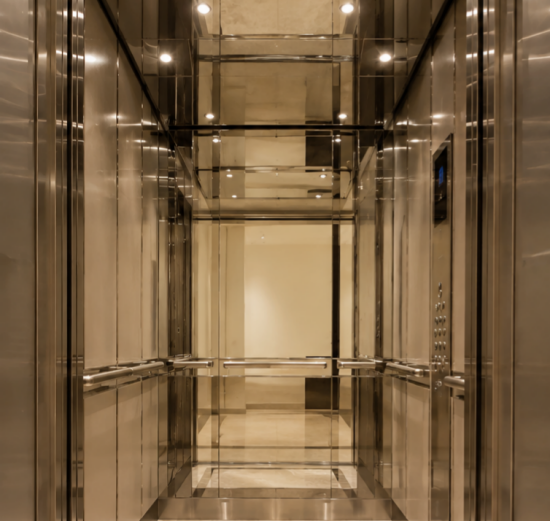

🛗 Elevator cab lining
Mirror, brushed, or anodized finishes for elevator interior walls and ceilings. Thin panels maximize cab space while meeting fire and weight limits.

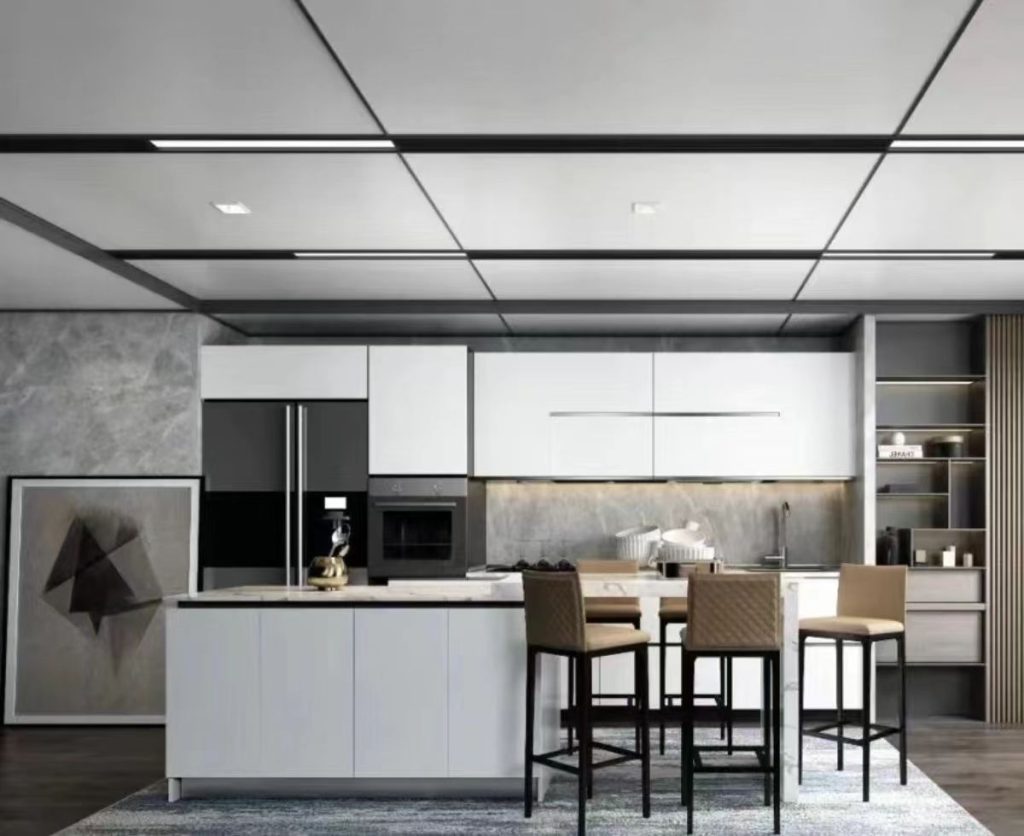

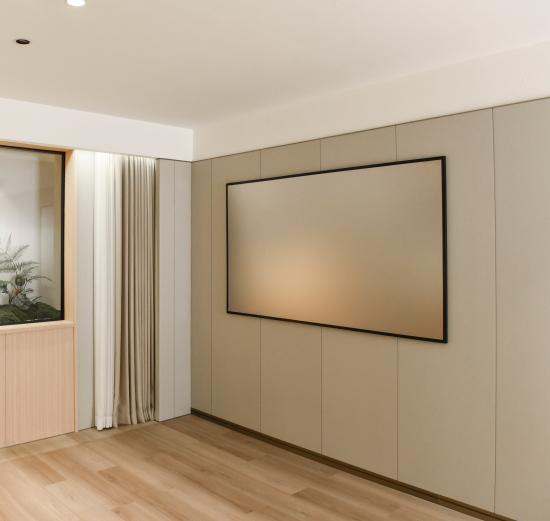

🏨 Hotel & commercial fit-out
Custom color and texture options meet FF&E specifications for hotel lobbies, retail interiors, and hospitality renovations at competitive factory prices.

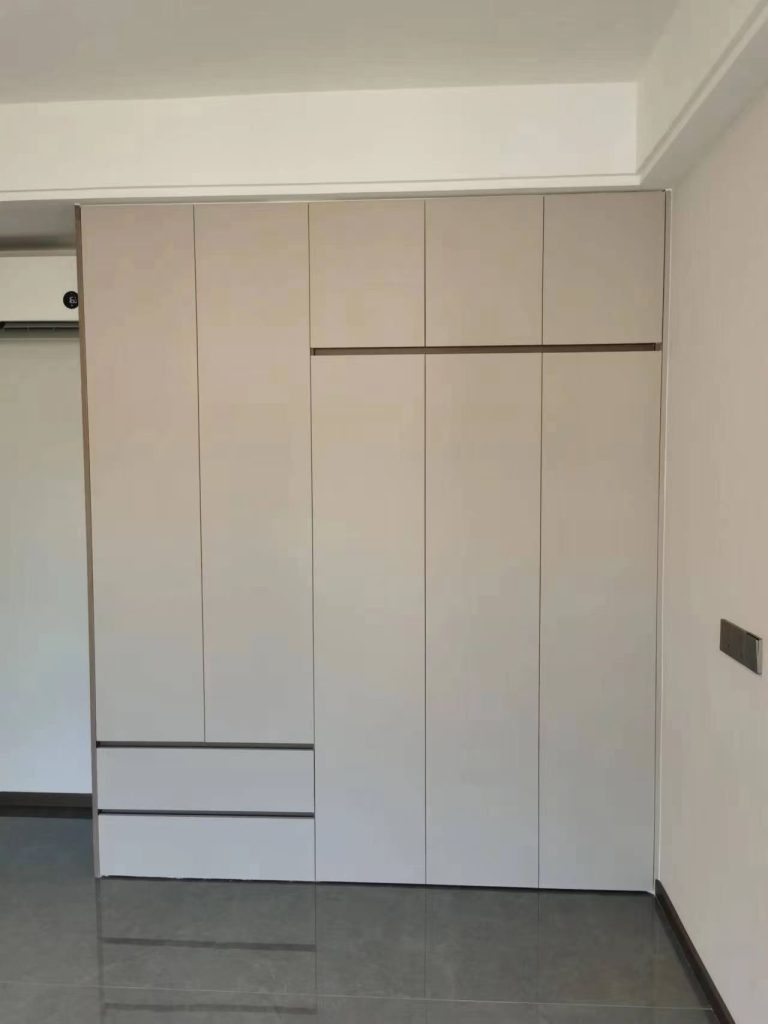

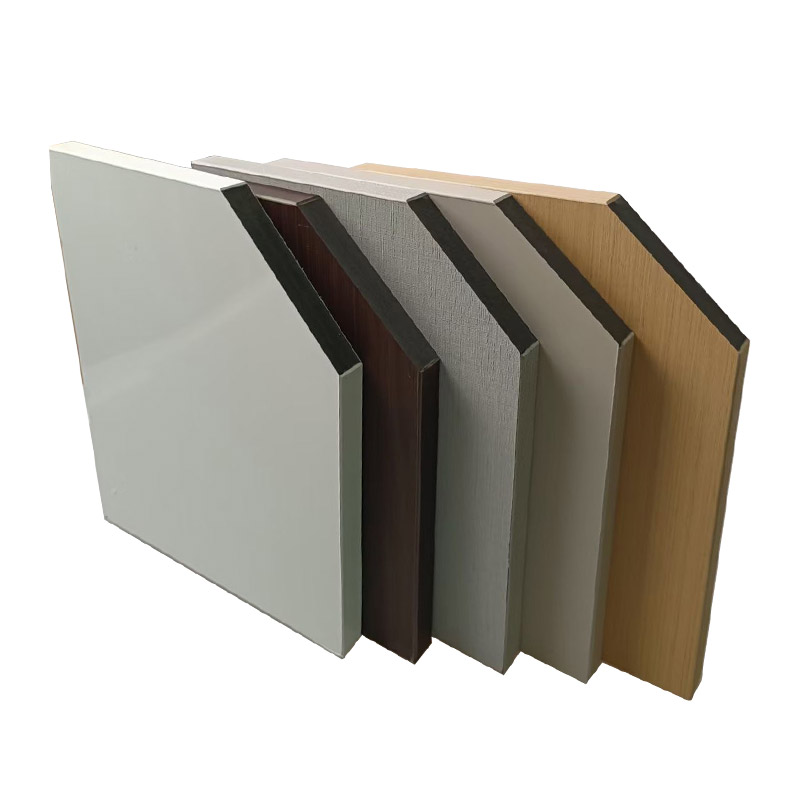

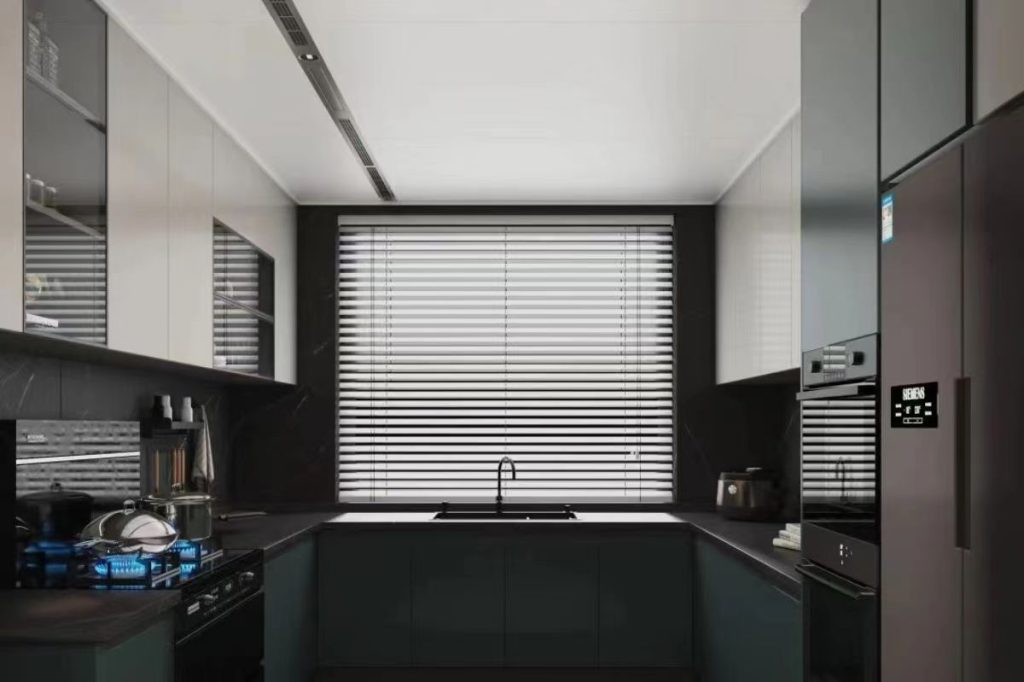

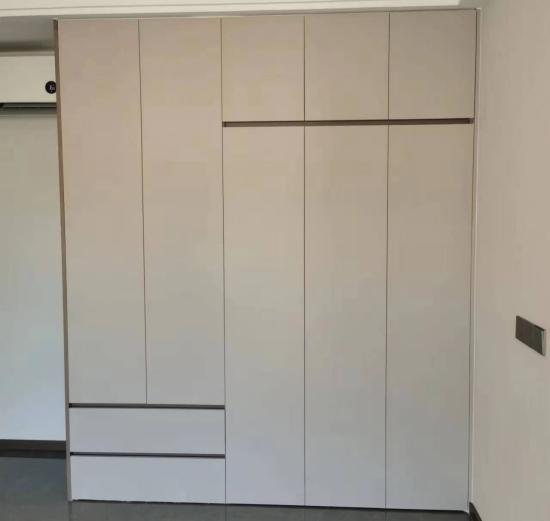

🪑 Cabinet & furniture panels
Lightweight yet highly rigid panels for cabinet doors, wardrobes, office furniture. Honeycomb construction reduces weight while maintaining excellent flatness, durability, and long-term dimensional stability.

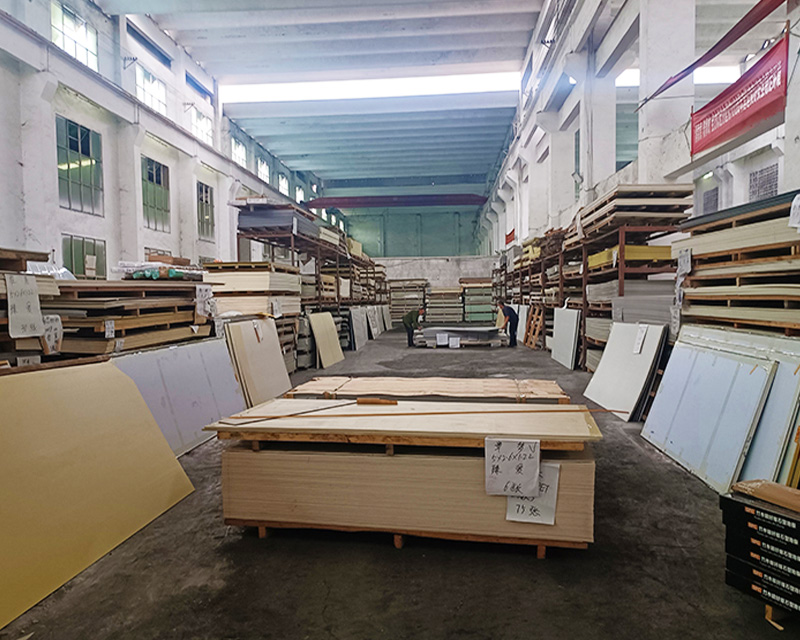

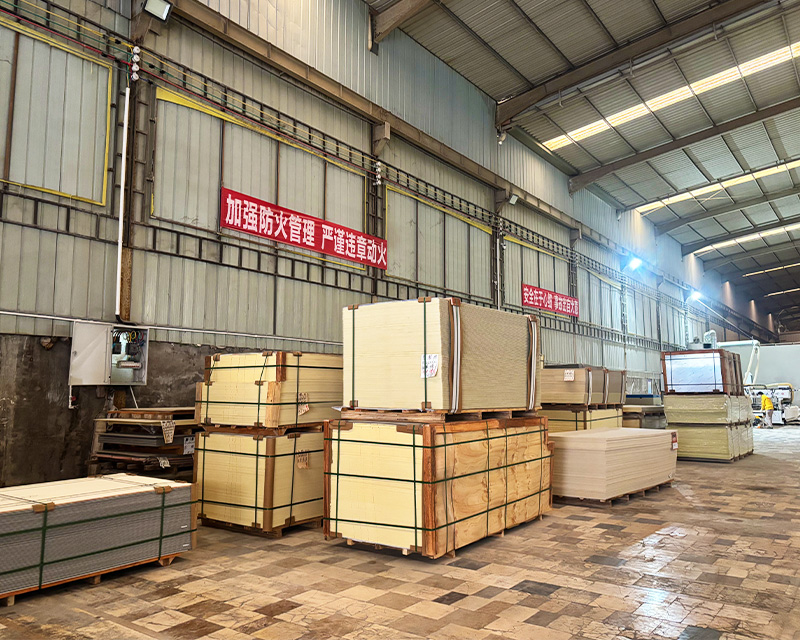

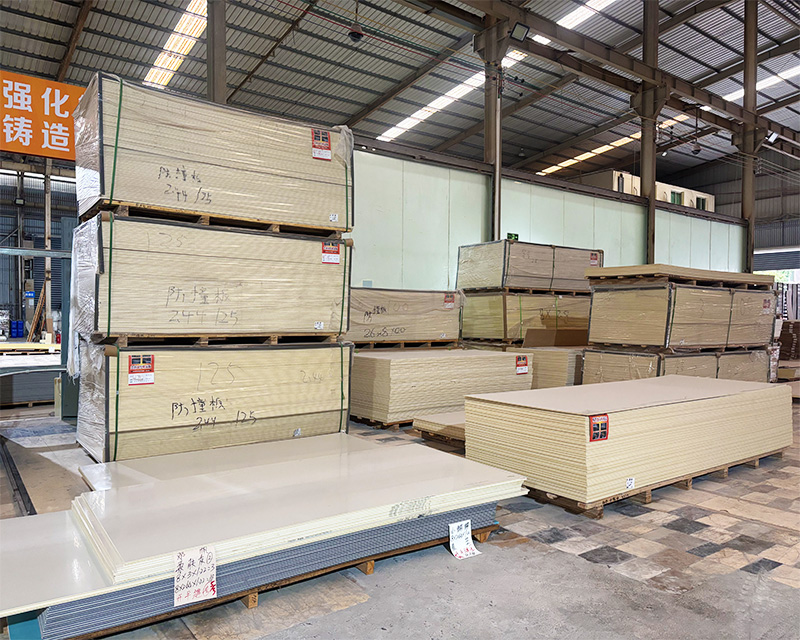

14+ Years of Factory-Direct Supply
We control every step — from raw material selection to final product inspection — ensuring consistent quality across every shipment.
14+
Years export experience
50+
Countries & regions served
15d
Standard order delivery cycle
24h
Quote response guarantee

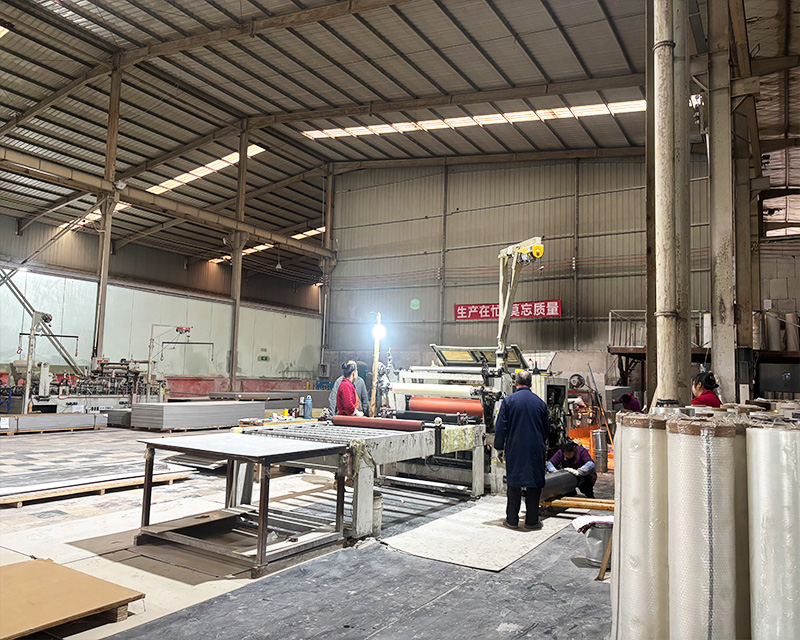

- Full In-House Production: From mixing raw materials to extrusion and finishing — all done under one roof. Nothing is outsourced, giving us complete quality control at every stage.
- Multi-Stage Quality Inspection: Each shipment undergoes flexural strength testing, UV radiation resistance testing, and moisture resistance testing, backed by an SGS certificate.
- OEM / ODM Support: Brand customization, exclusive color development, and free design services available. We support your private label from concept to finished product.
- Technical Support Included: Every order includes installation manuals, video tutorials, and access to online technical consultation — ensuring your team and end clients can install with confidence.
- Rapid Issue Resolution: Dedicated foreign trade team. Quotations within 24 hours. Customer issues resolved within 3 business days — guaranteed.
