Custom SPC Vinyl Flooring
SPC Vinyl Flooring Details
Huigong is a professional SPC floor manufacturer in China with more than 10 years of experience. High-density stone plastic base + wear-resistant coating can easily deal with water stains in the kitchen, high-frequency trampling in the living room, and pet scratches without leaving marks; easy to install, with lock-in splicing, saving construction time.
Product Information | Stone Plastic Composite Flooring | Brand | HG |
Color | wood grain, marble, Solid Color | Base Material | 100% Virgin PVC & calcium carbonate |
Density | 2.0 g/cm³ | Thickness | 4/5/6/8 mm/ Customized |
Length/Width | 1100mm*190mm /290*900mm Customizable | Under Lay | 1.5mm IXPE |
Surface Finish | UV Coating( Matt/ Glossy) | Embossed | Deep embossing, shallow embossing, EIR(Embossed-in-Register) |
Edge profile | Micro-bevel | Installation | Floating Click Lock |
Waterproof | 100% | Fire Rating | B1/Bfl-s1/Class A |
Anti-Slip | DIN51130 | Package | Carton Box |
Certificate | CE/SCS/Floorscore | Application | Indoor |

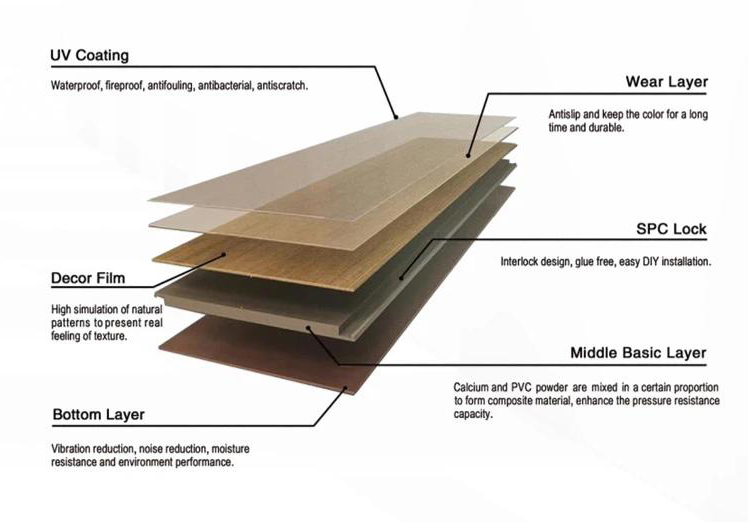

SPC Vinyl Flooring Structure

SPC Vinyl Flooring Meaning
As an innovative and environmentally friendly solution in the field of modern home decoration, SPC vinyl flooring is becoming a new favorite in the market with its excellent performance and sustainable characteristics. This product adopts high-tech production technology, and the core raw materials such as natural limestone powder, high-quality polyvinyl chloride (PVC) resin and environmentally friendly stabilizer are compounded and pressed through high temperature and high pressure process, which perfectly combines the stability of stone and the flexibility of polymer materials.
SPC vinyl flooring can simulate various textures and colors through the color film layer to decorate and beautify the space; it has practical properties such as wear resistance, waterproof, anti-slip, fire resistance, sound absorption, impact resistance, and UV resistance, and is dimensionally stable and environmentally friendly and healthy; it is easy to install, with nail-free glue keels, and can be quickly laid or directly covered on the old floor; it is simple to maintain, stain-resistant and easy to clean, and is also suitable for floor heating and can dissipate heat evenly.
SPC Vinyl Flooring Installation

Long side oblique insertion and locking
- Align the long side tongue (raised part) of the floorboard with the long side groove (groove) of the laid floorboard at an angle of 30°.
- Insert obliquely and press down gently. A “click” sound indicates preliminary locking.

Short side sliding docking
- Keep the long side connected, and slide the short side tongue parallel to the short side groove of the adjacent floorboard.
- Push horizontally until both ends are completely aligned.

Short side soft hammer auxiliary locking
- Place a plastic knocking block at the short side joint (to protect the edge of the floorboard).
- Tap the knocking block with a soft rubber hammer to ensure that the short side is completely locked and eliminate slight gaps.

Comprehensive inspection
- Press the joint by hand to confirm that there is no looseness or warping.
- Repeat the above steps to complete the laying of the whole house.
Advantages Of SPC Vinyl Flooring

SPC Vinyl Flooring Applications
