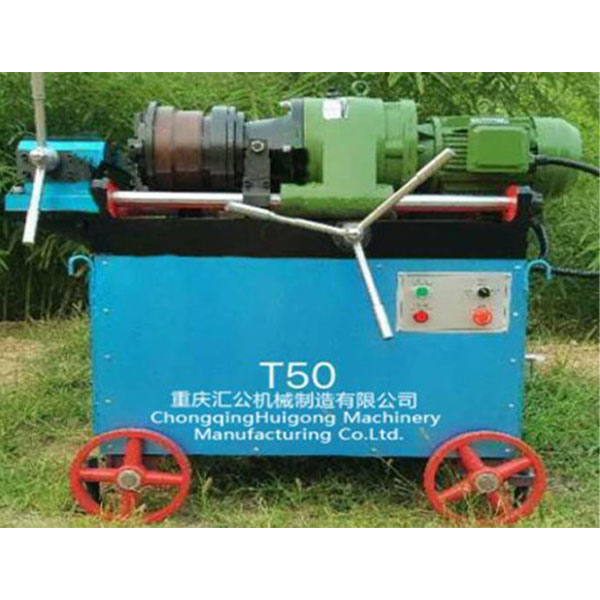

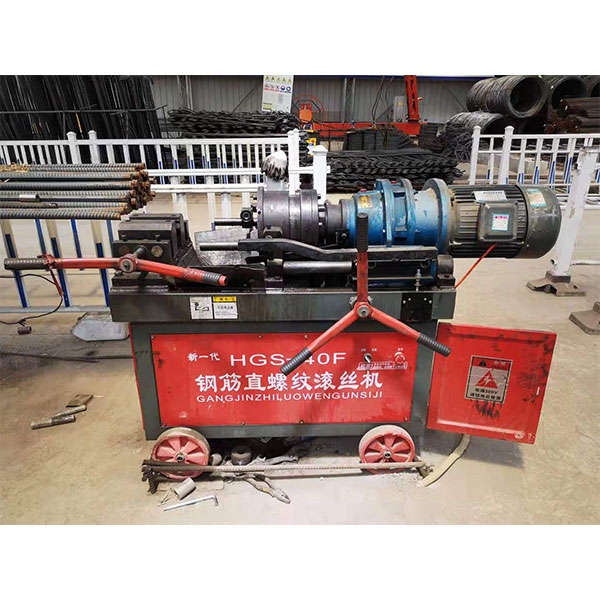

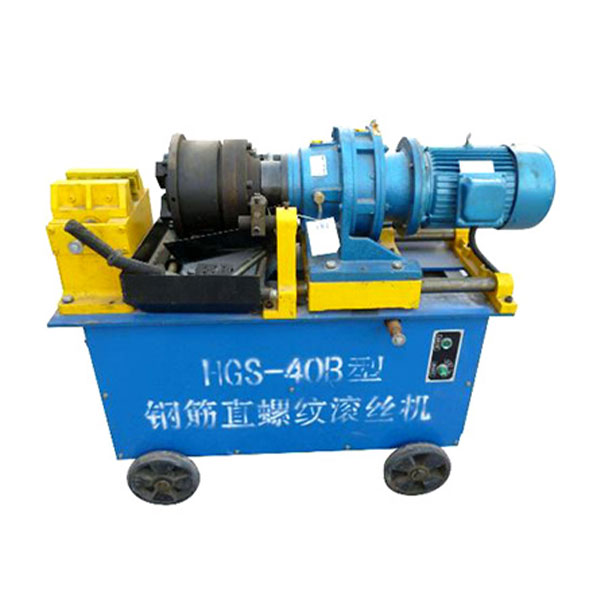

This machine is mainly used in the construction of ribbed steel bar straight screw thread processing, is to achieve reinforced straight thread connection process of key equipment.
It consists of frame, clamp, guide, slide, reducer, stripping rib rolling head, feeding mechanism, automatic opening and closing mechanism, stroke limit structure, cooling system, electrical control box, and control system.
This machine is a unique design, reasonable structure, one-time clamping reinforced rib peeling rolling thread can be completed. Processing speed, a high degree of automation, convenient operation, service life is long, thread rolling round joint additional cost is low. About machining, screw thread does not need other accessories. This equipment is the halogen-light operations, no explosion fire hidden danger, no pollution, high safety, efficiency, can construction 24 hours a day.
Reinforced straight thread ends to make a shape, smooth and standard thread, simple operation, reliable work. To the cooling liquid, the cooling effect is better after using it. A specification of the steel processing, rolling head simply adjust the time, so the procedure is greatly simplified, straight thread machine to overcome the general procedure is repeated cumbersome drawbacks than the average machine efficiency can be increased 2-3 times.
Supply voltage
Pashe
Power
Machining diameter(mm)
SPEC (mm)
Weight(kg)
380V
Three-phase
4KV
φ12-φ50
1400*600*1500
600
Supply voltage
Pashe
Power
Machining diameter(mm)
SPEC (mm)
Weight(kg)
380V
Three-phase
4KV
φ16-φ40
1050*450*1000
500
Features
1. Roll thread is not cut thread, so could protect the highest tensile strength of parent metal.
2. Easy to operate. The automatic opening-closing mechanism for the rib peeling device, needs only 30 seconds to finish a threaded end.
3. Peel ribs and roll threads by the same machine, so could save labor and improve productivity.
4. Widely used. Be able to process rebar diameter 16-40mm
5. Environment-friendly, safe, no environment, and weather restrictions.
6. Economic, low investment for the equipment
Packaging
A stable wooden package protects the machine from strike and damage.
Wound plastic film keeps the machine out of damp and corrosion.
The fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in a container without a package.
Shipping
For LCL, we cooperated with a reputable logistics team to send machines to seaport speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
Quantity(Pieces)
1 – 10
11 – 20
>20
Est. Time(day)
5
20
To be negotiated
3 Points Enterprise advantages
1. We are the Manufacturer. We can provide OEM&ODM services
2.100% factory outlet
3. The qualification rate is 99%
FAQ
A: We are an original equipment manufacturer.
It is according to the model and quantity.
Generally, it is 3-5 days if the products are in stock.
It will be 15-30 days if you want to customize the products
We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.
A: Yes, we could offer the sample for free charge, but clients need to pay the cost of freight.
